Plant Design
Supper Hopper - (Nyrstar 2010)
The aim of the project was to replace existing hoper with a new design that allows better access and better functinality.
The new "Supper Hopper" (about 10m in length and 3.5m width) consists of; Bin Divider (upper bins), Cradle Frame, Lower Bins and Leg Chutes with Liner Boxes.
The hopper was designed for Nyrstar's Blast Furnaces plant and installed during shutdown in 2010.
Model - Autodesk Inventor

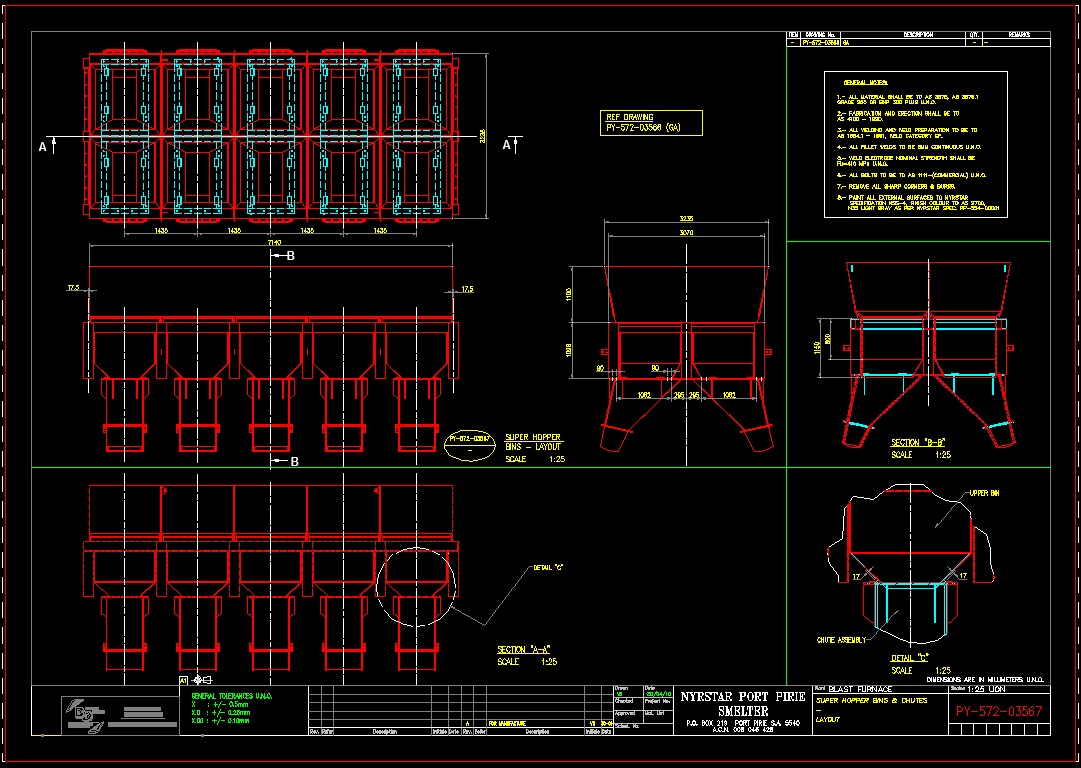

Layout / Section Views
