Plant Design
Charge Port Venting
The Charge Port Venting was designed for Zinifex Port Pirie Smelter in 2007.
The existing venting for charge port #1 and #2 was not sufficient to remove the fumes generated during charging of the furnaces.
A new ducting routes, new hoods and canopy for Scull Breaker was designed to allow capture and extraction of the fumes more efficiently.
Model - Autodesk Inventor

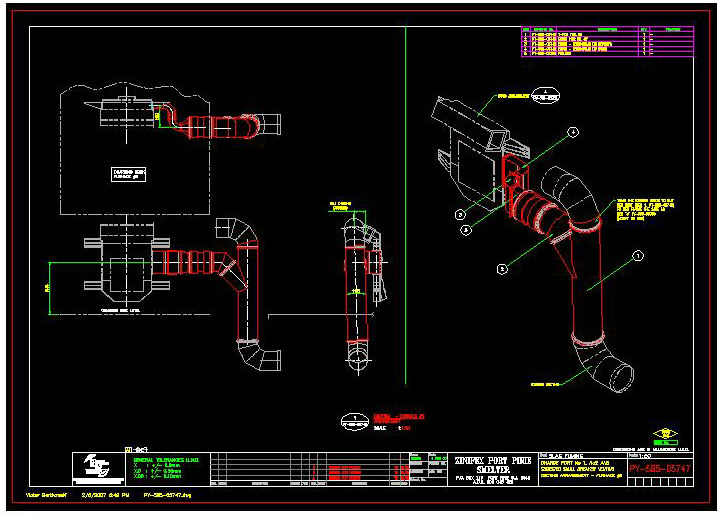

Layout
